ADM Performance 2650 Exhaust System for 2014–2019 Chevrolet Corvette

Description

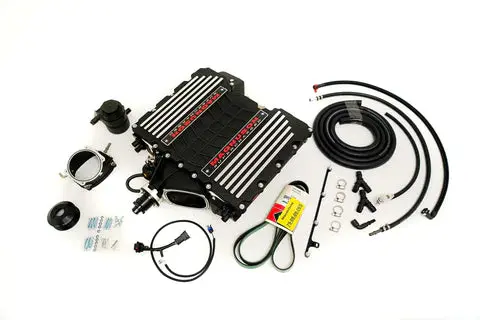

Take your C7 LT1 OR C7 Z06 to the next level with Magnuson’s TVS2650 ADM Supercharger System! Built off  ADM Performance Line, our Corvette 2650 System will give your engine an incredible “PROVEN” horsepower and torque.

Up to 729 rwhp hp and 729 ft-lbs at the crank! The system has been designed to fit under the hood of a stock C7 Z06 and C7 stingray , all while featuring two massive charge air coolers for maximum cooling capability.

At ADM Performance , we only use the highest quality components in our supercharger install parts,the most complete in the industry with standard upgrades nobody else offers.

Everything you need to supercharge your Corvette

• 729 rwhp and 729rwtq at 15 lbs of boost peak.(As seen on Dyno in a Z06)
• Magnuson TVS2650 Supercharger System designed to mount to GM LT4 heads as well as LT1 Heads.
• Utilizes Eaton TVS Technology incorporating high helix, four lobe rotors for maximum supercharger efficiency across entire speed range.
• Utilizes patented Dynamic Flow Tuning (DFT) inlet porting.
• Designed to fit under the hood of LT4 vehicles (slight modification may be required for Corvette model with pulley sizes larger than 70mm.
• Bolt-on anodized billet cartridge-style front drive allows for future belt line upgrades.
• High flow dual charge air cooler set-up with ¾” water inlet and outlet ports reduce coolant restriction, allowing maximum flow with extremely high cooling efficiency.
• CNC-machined ports for optimized airflow into engine cylinders.
• Vacuum bypass system with instantaneous boost response designed to unload supercharger at engine idle and part-throttle for improved fuel economy. Intercooled bypass air is recirculated through the supercharger for rapid cooldown and ultimate performance.
• Proven maintenance-free supercharger technology. No added complexity of external supercharger oil cooler/heaters for extreme climates.
• LT1 REQUIRE LT4 INJECTORS AND HIGH PRESSURE PUMP
• 2014 Corvette Stingray require 2015-2018 waterpump – Not Included
