High-strength billet aluminum bracket kit for low-mount alternator and power steering pump installation on LSX, LS3, LQ4, and LQ9 truck engines

Description

Truck Alternator and Power Steering Pump Bracket Kit

• Requires:  truck/SUV (or LS3/L99 Camaro) crank pulley (12634105)
• Requires:  1998-02 LS1 Camaro power steering pump & pulley (63105 & 12559885)
• Alternator: (19244779)(will not fit Corvette/CTSV/G8 or 2010 up Camaro large bolt pattern alternators), will fit any other LS powered vehicle alternators with any amperage.  145+ alternators do not have the provision for the rear bracket.
• Made in Wichita, KS from aerospace grade, USA billet aluminum

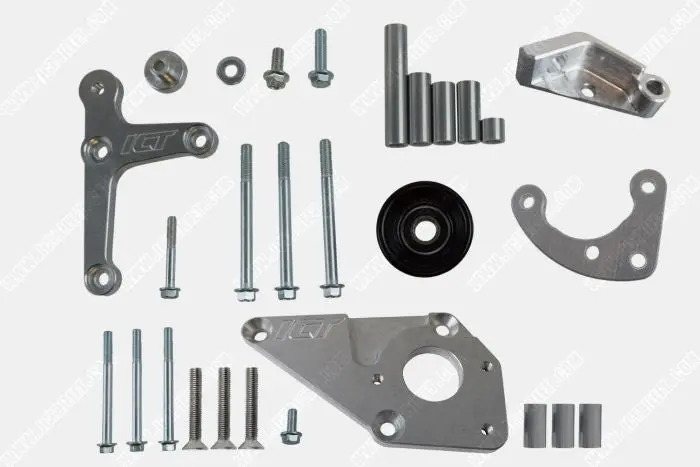

• Includes: alternator bracket, power steering bracket, smooth pulley, and mouting hardware
• **Fits: all GM LS series engines
• If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)

**On “truck” engine blocks with only 1 mounting hole in the block, you will be required to drill a second mounting hole using drill template 551445
Requires: 955K6 (95.5 inch) belt with 105 amp alternator and ICT Billet 551472-3 Sanden 7176 A/C kit                 987K6 (98.7 inch) belt with 105 amp alternator and ICT Billet 551474-3 Sanden 508 A/C kit                 895K6 (89.5 inch) belt with 105 amp alternator and ICT Billet 551495-3 R4 A/C kit                 980K6 (98.0 inch) belt with 105 amp alternator and ICT Billet 551585X-3 R4 A/C kit                                 790K6 (79.0 inch) belt with 105 amp alternator and factory belt tensioner
