ICT Billet LS engine swap bracket kit designed for Fox-body Mustangs, integrating OEM-style A/C compressor, alternator, and power steering pump mounting in a single cohesive solution.

Description

LS to Fox Body Power Steering Alternator and A/C Compressor Bracket Kit

• This kit is designed specifically for an LS swapped Fox Body Mustang (1979-1993)(Third Generation)
• This kit uses the LS1 Camaro Crank Pulley

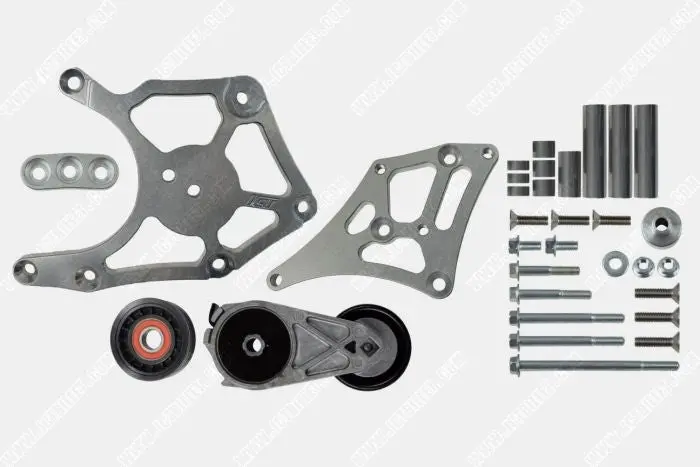

• Includes: bracket, idler pulleys, tensioner, and mounting hardware
• Requires a 1990-2004 Mustang factory power steering pump and pulley. (F1ZZ3A674BBRM & D9ZC3D673A3A)
• **Alternator See Below: Suggested Part #: 19244779. ((Will not fit Corvette/CTS-V Alternators or 2010-15 Camaro) large bolt-pattern, or high amp alternators). Will only work with 105 amp alternators
• Requires a 1982-1993 Mustang Factory A/C Compressor – 6P148A (Ford “factory” installed) Compressor
• (Does Not Work with Ford “dealer” (Installed A/C Compressor – SD709 Compressor)
• If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
• Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum

**This can only be used on blocks with at least 2 mounting holes on the front of the block. Blocks that only have 1 mounting hole will require drill template 551445 to drill and tap the second M10-1.5mm hole.   This is in a non critical part of the engine block, with no risk of drilling into the cylinder, oil, or water jacket.
