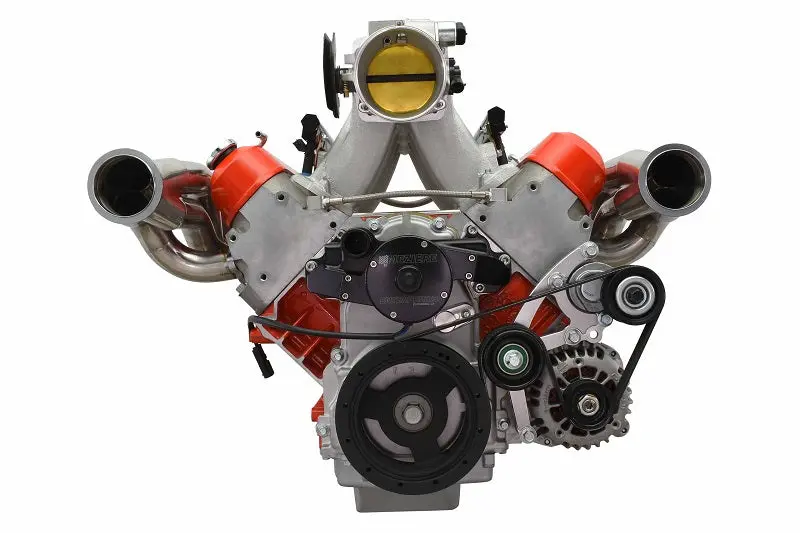

ICT Billet LS Low-Mount Alternator Bracket Featuring Integrated Tensioner – Optimized for Electric Water Pump Installations on Trucks

Description

Alternator Bracket w/ Automatic Belt Tensioner

• Compatible with: Truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)
• Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
• Includes: bracket, tensioner, idler pulley, and mounting hardware
• Mounts the alternator low on the driver side when using electric or remote water pump
• Alternators: (ICT# ALT300 (105amp), ALT302(160amp)); double-mounting holes allow for “truck” alternators as well as Corvette/G8/ 2010-15 Camaro bolt pattern alternators (not compatible with CTS-V alternators)
• If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
• Also available, wire adapters to go to or from 4 pin/2 pin alternators (ICT# WAALT30 and WAALT40)

Compatible with 505K6 (50.5 inch) belt when using the 105amp alternator
