LME Billet Aluminum Intake Manifold for LT1 and LT4 Engines

Description

DESCRIPTION

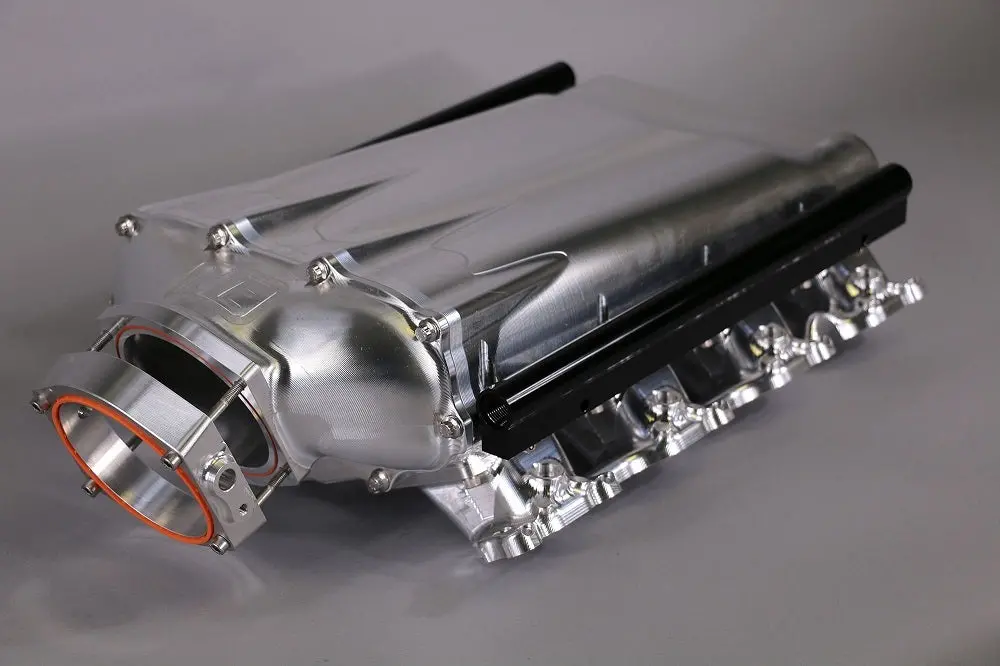

LME LT1 billet intake manifold offers a large plenum to feed your forced induction as well as larger cubic inch naturally aspirated and nitrous engines. Its rigid construction will handle any and all levels of boost without compromise of structural integrity (will not leak or balloon under high boost).

• Fits under the hood of C7 & C7 Z07 without modification.
• Direct bolt on to LT1 & LT4 cylinder heads
• Performance gains over GM factory intake is 50 HP and nearly 2000 RPM
• Integrated dual nitrous bungs.
• Accepts single throttle body , factory 90mm LT1 or after market 102mm throttle body
• -8AN fuel rails

LT1 has provisions for conventional secondary injector . This may be desirable when exceeding the capabilities of factory direct injection fuel system.

Intake comes standard with stainless hardware shown, stainless mounting bolts, throttle body O-ring and intake gasket O-rings. If secondary injectors are requested the black anodized fuel rails are machined for -8AN straight O-ring fittings. Fuel rail height is set up to accept LS7 38mm (short) injectors. Billet fuel rail spacers can be purchased to accommodate 60mm (tall) injectors.
