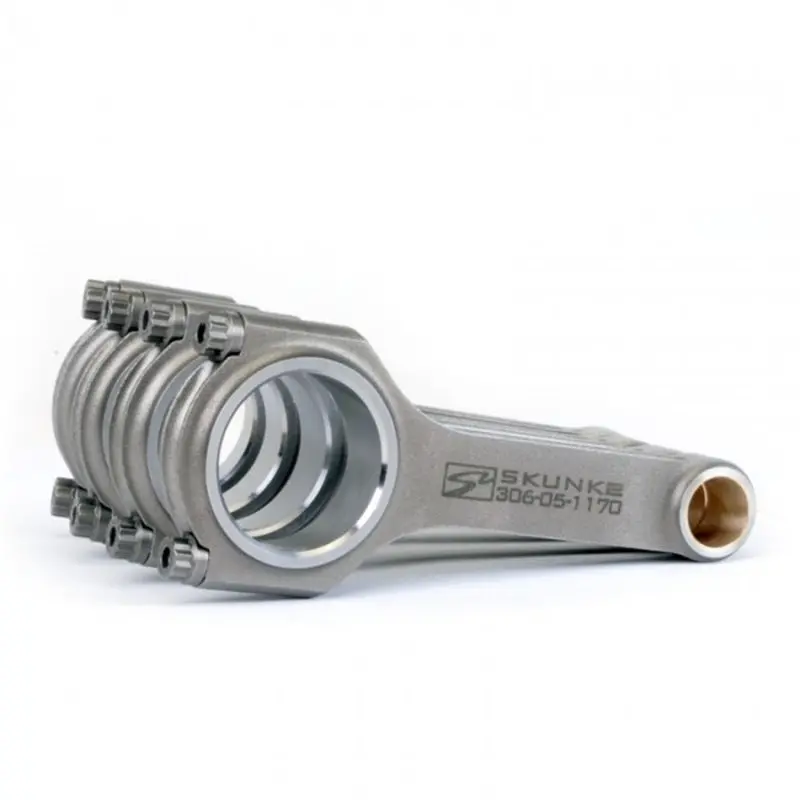

Skunk2 Alpha Series Forged Connecting Rods For Honda H22A Engine

Description

Alpha Series Rods are forged from select 4340 chromoly steel and feature a straight H-beam design, resulting in the ultimate strength-to-weight ratio. 4340 chromoly is one of the strongest materials available, however, not all 4340 chromoly is the same. As such, Skunk2 relies on extensive material testing and works closely with its foundry to produce high-quality rods at an affordable price. Comprehensive heat-treating, tempering, and shot-peening processes together ensure that each Alpha Series Rod remains consistent and strong. Finally, each rod is magna-fluxed to ensure integrity and that each process has been completed thoroughly and according to Skunk2’s rigid specifications.
Alpha Series Connecting Rod Set; 143.15mm Length; 509 Grams; Rated to 900HP; H-Beam; Incl. 3/8 ARP2000 Bolts/Lube; 4340 Chromoly Steel; Set of 4;
Length: 143.15mm; Set of 4; Precision Machined; Weight: 540 grams; 3/8-Inch ARP2000/Skunk2 bolts; Shot-peened for reduced fatigue; Bronze wrist pin bushings; Laser-etched Skunk2 logo for authenticity; Fatter; H-beam design without drastic weight increase;

Fitment:
Honda Prelude Base 1997
Honda Prelude Base 1998
Honda Prelude Base 1999
Honda Prelude Base 2000
Honda Prelude Base 2001
Honda Prelude Type SH 1997
Honda Prelude Type SH 1998
Honda Prelude Type SH 1999
Honda Prelude Type SH 2000
Honda Prelude Type SH 2001
Honda Prelude VTEC 1993
Honda Prelude VTEC 1994
Honda Prelude VTEC 1995
Honda Prelude VTEC 1996
