Description

WAK076 Mag.1900/2300

Camaro/Truck Offset

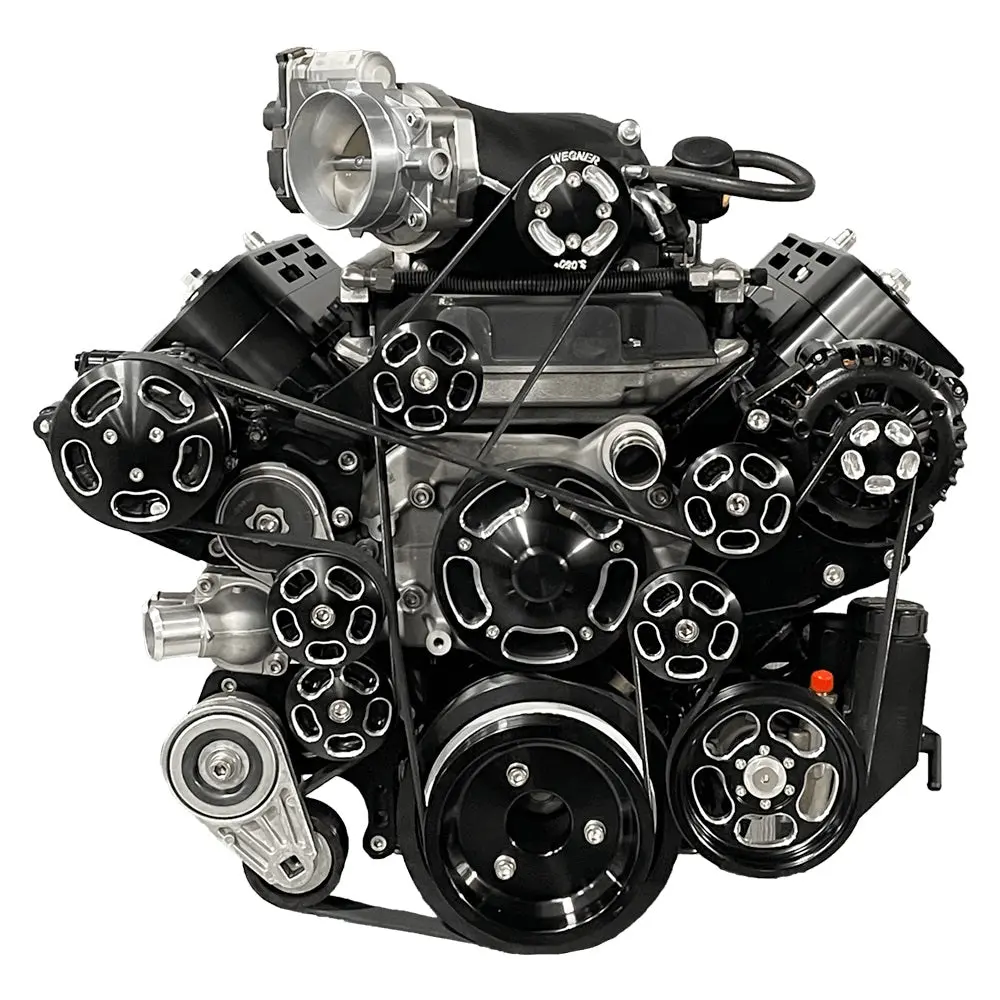

Wegner Automotive is proud to offer a new supercharged Font Accessory Drive Kit for builds equipped with the Truck Magnuson TVS 1900/2300 supercharger!

Expertly engineered and dyno-tested in house for high horsepower street use, this Front Accessory Drive Kit includes key features such as –

• CAD designed and CNC machined billet aluminum brackets and pulleys for maximum rigidity, eliminating component flex in high performance applications
• Complete belt wrap with an extra idler pulley for NO slip operation
• Internal fan alternator to cool better and allow more RPM
• Dedicated 10 rib supercharger belt
• Multiple blower pulley ratios depending on boost requirements

All our accessory drives are built to order – please allow 4-6 weeks for delivery

Note: Only Billet components would come in custom finish. Factory components would come in factory finish.

The WAK076 Magnuson 1900/2300 Supercharger Accessory Drive Kit includes:

• ATI Z-body (Camaro) 10 rib Damper- OE diameter OR 9% OD
• Heavy Duty Gates Belt Tensioners
• Standard Internal Fan 170 Amp 1 Wire or GM 2 pin Late Model PowerMaster Alternator
  (Optional Upgrade: PowerMaster 225 Amp Internal Fan 1 Wire Alternator, installed on same bracket, longer belt)
• PSC GM Type 2 Power Steering Pump with or without attached reservoir
• OE LSA /LS3Water Pump
• OE Sanden SD7 AC Compressor
• All necessary Wegner Automotive precision CNC Machined Billet brackets, Pulleys, and Stainless-Steel Mounting Hardware
• Available in Solid Black Anodize, Wegner Original Two-Toned Diamond Cut, and Machined Finish

Finish Color

• Solid Black
• Machined Aluminum
• Two-Tone Diamond Cut ($100)
• Polished Aluminum($300)

Optional Alternator

• 170 Amp Powermaster
• 225 Amp Powermaster ($150)
• 370 Amp Mechman ($300)

Power Steering Reservoir

• Power Steering Reservoir Attached to Pump
• AN Fittings for Remote Mount Reservoir

Supercharger Pulleys

• Multiple sizes available depending on engine build and desired boost
