Description

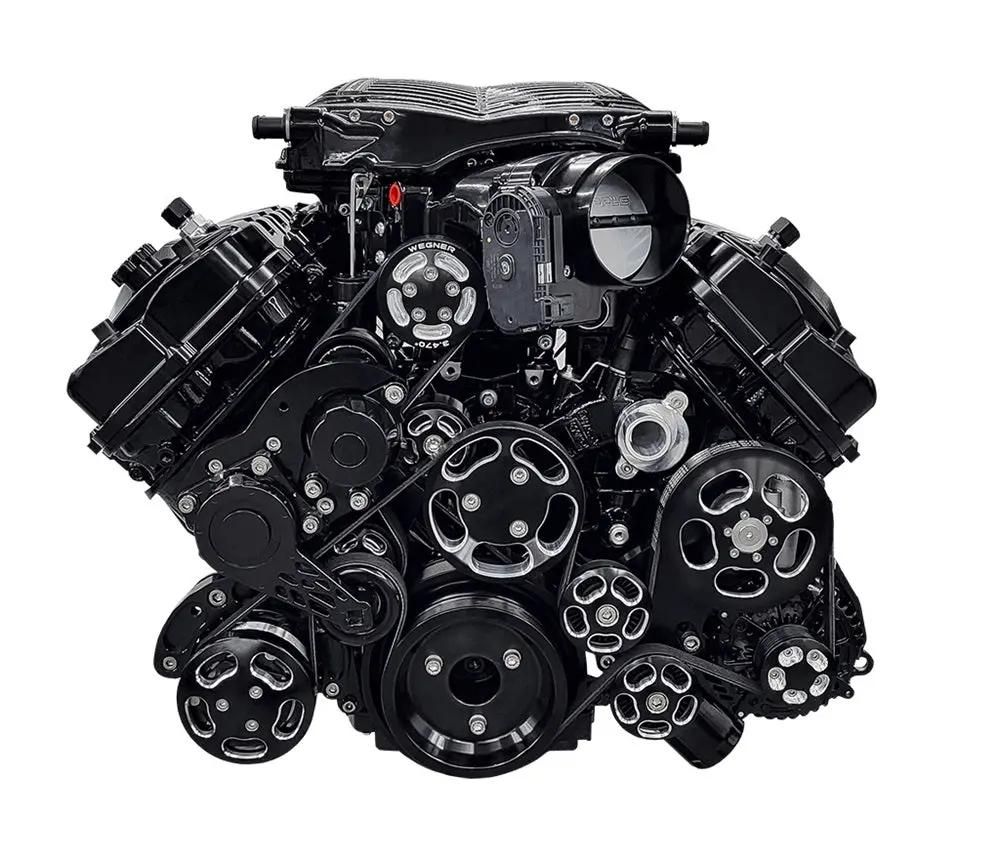

WAK090 Coyote Whipple 3.0 Drive Kit

Gen lll Coyote

The WAK090 is our fist offering to the popular Gen III Coyote platform. This kit combines our experience… to bring you a reliable, purpose-built accessory drive designed to be as compact as possible. Like our other supercharger drives, this kit features a dedicated 10-rib supercharger belt to eliminate any belt slip. See the full list of what’s included under the “Features” tab

The WAK090 Front Drive includes key features such as –

• CNC Machined billet aluminum brackets and pulleys, CAD designed for maximum rigidity to eliminate component flex in high horsepower applications
• Complete belt wrap with extra idler pulleys for NO slip operation
• Independent 10 rib belt drive for the supercharger, separate from all accessories

All our accessory drives are built to order – please allow 2-4 weeks for delivery.

Our base WAK090 Whipple 3.0 Coyote Accessory Drive comes with the following –

• ATI Racing 10 Rib Super Damper w/ Crank Pulley
• Heavy Duty Tensioners and Belts
• Standard 175 Amp Powermaster Hairpin Alternator
• GM Type 2 Power Steering Pump with -6 and -10 AN Fittings
• SD7 A/C Compressor
• All necessary Wegner Automotive precision CNC Machined Billet brackets, Pulleys, and Stainless-Steel Mounting Hardware

-Compatible with Mustang and Truck engine cam cover Compatible with most Coyote top mount superchargers. Ask us for more info on your specific applicationNote: Only Billet components would come in custom finish. Factory components would come in factory finish.

Finish Color

• Solid Black
• Machined Aluminum
• Two-Tone Diamond Cut ($100)
• Polished Aluminum($300)

Optional Alternator

• 170 Amp Powermaster
• 225 Amp Powermaster ($150)

ATI Damper Sizes

• 5% Overdrive
• 20% Overdrive

Supercharger pulley sizes

• 3.700″
• 3.470″
• 3.225″
• 3.050″
