ICT Billet Aluminum A/C Compressor Mounting Bracket for GM LS-Based Engines – Precision-Fit for Corvette R4 Applications

Description

LS Corvette R4 A/C Compressor Heavy Duty Bracket Kit

• Requires: Corvette (any year LS) (or CTSV/G8/SS) crank pulley (12560115)

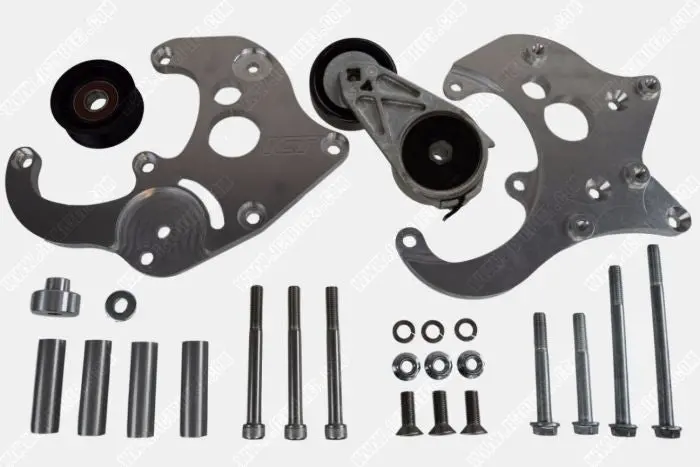

• Includes:  A/C compressor bracket, belt tensioner,  and mounting hardware
• Can be used with ACDELCO A/C compressor Part # 1520285 (has 4.25″ pulley)
• Made in Wichita, KS from aerospace grade, USA billet aluminum

Belt length with 105 amp alternator and ICT 551521-1: 970K6  (97.0 inch).


This does NOT use the factory style LS vehicle a/c compressors (25891791)  If using a Camaro R4 A/C compressor (has larger 5″ diameter pulley) then bolt heads will need clearanced at the compressor pulley. Manual belt tensioners are available separately or can be requested instead of the automatic tensioner – Part# 551479
