Description

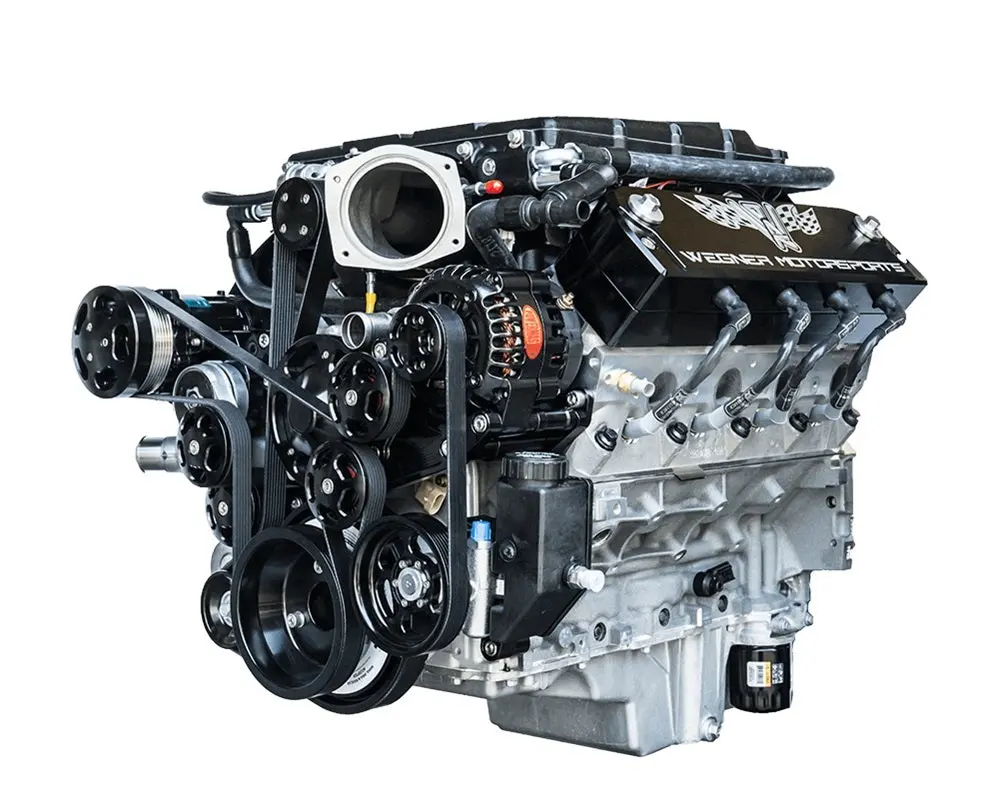

WAK042 Edelbrock 2.3L

Corvette Offset

The WAK042 Kit has been engineered for high performance street use with key features such as:

• Max pulley belt wrap for NO slip, extra idler pulley to give power steering complete wrap
• Multiple blower pulley ratios depending on boost requirements
• Internal fan alternator cools better while also allowing for more RPM vs. external fans which are prone to bending
• Dedicated 8 rib Supercharger belt
• Alternator, AC, & Power Steering are on separate 6 rib belt
• CAD designed & CNC machined brackets & pulleys

Kit will NOT fit with VVT front covers.

All our accessory drives are built to order – please allow 4-6 weeks for delivery

Note: Only Billet components would come in custom finish. Factory components would come in factory finish.

ATI damper crank pulley

Options:
Supercharger crank pulley diameter; OEM or 12% overdrive

Power steering pump

GM Type II Style PS Pump

Options:
– Attached PS Pump reservoir (standard) Optional fittings (6AN, 10AN) for Remote Res.

Alternator

170 Amp single wire or GM 2 pin with internal fan
Optional: 225 or 370 Amp upgrade

Finish Color

• Solid Black
• Machined Aluminum
• Two-Tone Diamond Cut ($100)
• Polished Aluminum($300)

Optional Alternator

• 170 Amp Powermaster
• 225 Amp Powermaster ($150)
• 370 Amp Mechman ($300)

Power Steering Reservoir

• Power Steering Reservoir Attached to Pump
• Power Steering -6,-10 A/N fittings for Remote Mount

ATI Damper

• OE Diameter
• 12% Overdrive

Supercharger Pulleys

• Multiple sizes available depending on engine build and desired boost
