Description

WAK041 Magnuson 2.3L

Corvette Offset

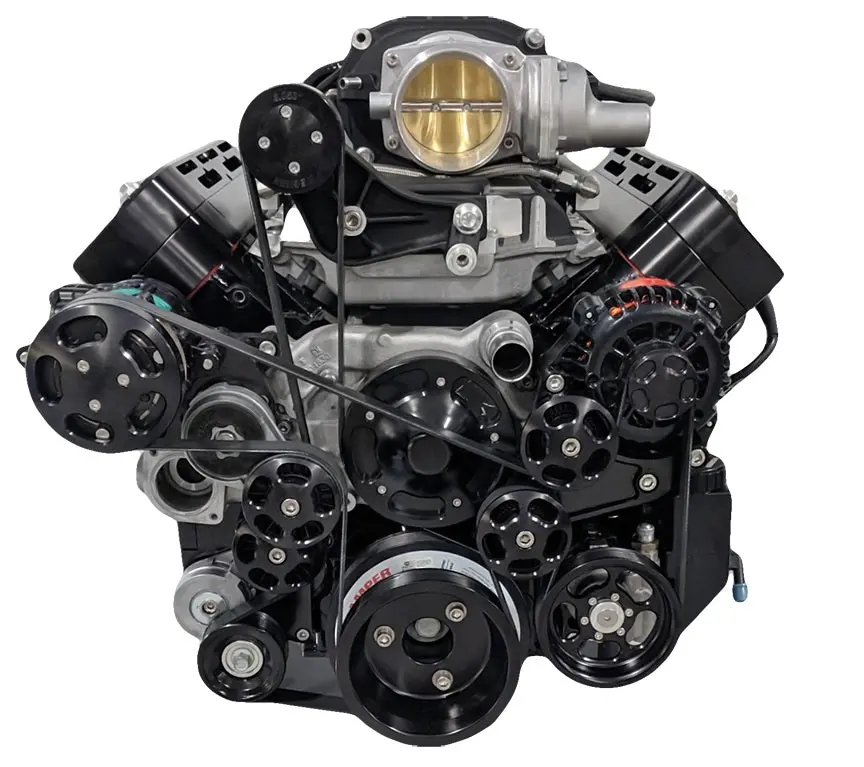

The WAK041 Magnuson Hot Rod 2300 Supercharger Accessory Drive Kit includes:

• ATI Y-body (Vette) 8 rib Damper- OE diameter or 12% overdrive
• Heavy Duty Gates Belt Tensioners
• Standard Internal Fan 170 Amp 1 Wire or GM 2 pin Late Model PowerMaster Alternator
  (Optional Upgrade: PowerMaster 225 Amp Internal Fan 1 Wire Alternator, installed on same bracket, longer belt)
• PSC GM Type 2 Power Steering Pump with or without attached reservoir
• OE LSA /LS3 Water Pump
• OE Sanden SD7 AC Compressor
• All necessary Wegner Automotive CNC Machined Billet Brackets, Pulleys, and Stainless Hardware
• Available in Solid Black Anodize, Dual Tone, and Machined Finish

Kit will NOT fit with VVT front covers.

All our accessory drives are built to order – please allow 4-6 weeks for delivery

Note: Only Billet components would come in custom finish. Factory components would come in factory finish.

ATI damper crank pulley

Options:
Supercharger crank pulley diameter; OEM or 12% overdrive

Power steering pump

GM Type II Style PS Pump

Options:
– Attached PS Pump reservoir (standard) Optional fittings (6AN, 10AN) for Remote Res.

Alternator

170 Amp single wire or GM 2 pin with internal fan
Optional: 225 or 370 Amp upgrade

Finish Color

• Solid Black
• Machined Aluminum
• Two-Tone Diamond Cut ($100)
• Polished Aluminum($300)

Optional Alternator

• 170 Amp Powermaster
• 225 Amp Powermaster ($150)
• 370 Amp Mechman ($300)

Power Steering Reservoir

• Power Steering Reservoir Attached to Pump
• Power Steering -6,-10 A/N fittings for Remote Mount

ATI Damper

• OE Diameter
• 12% Overdrive

Supercharger Pulleys

• Multiple sizes available depending on engine build and desired boost
